4X4 RECOVERY GEAR

D-Shackle - OSU Orange


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Order singles or pairs.
Rust resistant finish.
Medium-gloss "OSU Orange" powdercoat.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter

U.S. SHIPMENTS (lower 48)

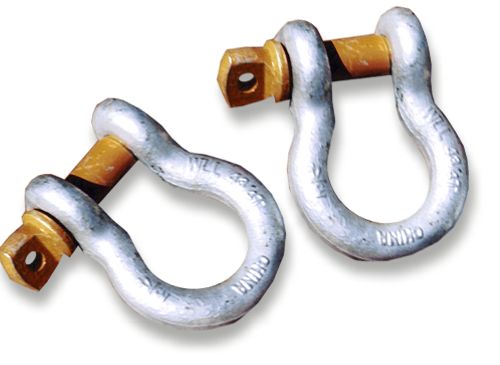

D-Shackle - VanBeest Green Pin


(click image for large view)

VanBeest Green Pin D-Ring Shackles are the most well-known D-shackles in the 4x4 world. Hot-dipped galvanized, with working load limits stamped on the shackles, and of course the signature green pin.

Material: High tensile steel, Grade 6, quenched and tempered.
Working Load Limit permanently stamped on every shackle.
Forged - Quenched and Tempered, with alloy pin.
Hot-dipped galvanized finish.
(Note: Green paint on pin is a brand marker and will peel off revealing hot-dipped galvanized surface.)

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

U.S. SHIPMENTS (lower 48)







D-Shackle - Crosby McKissick


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad.

Working Load Limit permanently stamped on every shackle.
Forged - Quenched and Tempered, with alloy pin.
Made in the U.S.

1/2" Shackle
4,000 lb Working Load Limit
20,000 lb Ultimate Strength
5/8" Pin Diameter

5/8" Shackle
6,500 lb Working Load Limit
32,500 lb Ultimate Strength
3/4" Pin Diameter

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter

1" Shackle
19,000 lb Working Load Limit
95,000 lb Ultimate Strength
1-1/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








Customer Service Tip

The question we get asked most frequently - What size D-shackle will fit my vehicle's bumper recovery points/mounts?

- Our 3/4" D-shackles with 7/8" pin is considered a standard 4x4 D-shackle size. Most factory and aftermarket bumper recovery points are sized to fit this D-shackle.


D-Shackle - Galvanized


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our galvanized D-Ring Shackle has a hot-dipped galvanized finish.

Working Load Limit stamped on every shackle.
Forged - Quenched and Tempered, with alloy pin.
Rust resistant galvanized finish.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter

1" Shackle
19,000 lb Working Load Limit
95,000 lb Ultimate Strength
1-1/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - Red White & Blue


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant finish.
Medium-gloss "Patriot Red, White & Blue" powdercoat.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

U.S. SHIPMENTS (lower 48)





D-Shackle - Patriot Red


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant finish.
Medium-gloss PATRIOT RED powdercoat.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter

1" Shackle
19,000 lb Working Load Limit
95,000 lb Ultimate Strength
1-1/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - Super White


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant finish.
Medium-gloss "Super White" powdercoat.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter

1" Shackle
19,000 lb Working Load Limit
95,000 lb Ultimate Strength
1-1/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - Old Glory Blue


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant finish.
Medium-gloss "Old Glory Blue" powdercoat.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - Patriot Red & Blue


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant finish.
Medium-gloss "Patriot Red & Blue" powdercoat.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

U.S. SHIPMENTS (lower 48)





D-Shackle - Safety Blue


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant finish.
Medium-gloss "Safety Blue" powdercoat.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - Safety Orange


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant finish.
Medium-gloss "Safety Orange" powdercoat.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - Old Man Emu Yellow


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant finish.
Medium-gloss "Old Man Emu Yellow" powdercoat.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - Black Powdercoat


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant finish.
Medium-gloss Black powdercoat.
Two Sizes Available.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter

1" Shackle
19,000 lb Working Load Limit
95,000 lb Ultimate Strength
1-1/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - Hot Pink Powdercoat


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant powdercoated finish.
Medium-gloss Hot Pink color.
Two Sizes Available.
Working Load stamped on shackle.
Forged - Quenched & Tempered.
Used in our military recovery kits.


(click image for large view)
Ray Stuessy sent us this pic of his wife's jeep with her hot pink D-shackles. Nice Rubi!

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - Desert Sand


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant powdercoated finish.
Medium-gloss Desert Sand color.
Two Sizes Available.
Working Load stamped on shackle.
Forged - Quenched & Tempered.
Used in our military recovery kits.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - OD Green


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant powdercoated finish.
Medium-gloss OD Green color.
Two Sizes Available.
Working Load stamped on shackle.
Forged - Quenched & Tempered.
Used in our military recovery kits.

3/4" Shackle
9,500 lb Working Load Limit
47,500 lb Ultimate Strength
7/8" Pin Diameter

7/8" Shackle
13,000 lb Working Load Limit
65,000 lb Ultimate Strength
1" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - John Deere Green


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. Our D-Ring Shackles have a rust resistant powdercoated finish.

Rust resistant finish.
Medium-gloss "John Deere Green" powdercoat.
Working Load stamped on shackle.
Forged - Quenched & Tempered.

1" Shackle
19,000 lb Working Load Limit
95,000 lb Ultimate Strength
1-1/8" Pin Diameter

U.S. SHIPMENTS (lower 48)








D-Shackle - Stainless Steel


(click image for large view)

The D-Ring Shackle is used for so many recovery situations. It is a must to have a set of quality d-ring shackles with adequate load rating, when venturing offroad. And there's nothing wrong with having them look good too!

AISI Grade 316 stainless.
Working Load stamped on shackle.

American Iron and Steel Institute
 AISI 316: Austenitic (chromium-nickel stainless class) stainless steel containing 2%-3% molybdenum. The inclusion of molybdenum gives 316 greater resistance to various forms of deterioration.

3/4" Shackle (AISI 316)
4 Ton Working Load
44,000 lb Ultimate Strength
7/8" Pin Diameter


U.S. SHIPMENTS (lower 48)











XD Recovery Kit
The all-in-one recovery kit, w/ heavy-duty gear bag.

Recovery Chain Kit
The recovery kit, for extreme conditions, w/ heavy-duty gear bag.


Disclaimer. Please read: The effectiveness of this equipment is directly related to the manner in which it is installed, used (for off-road use only), and/or maintained. Proper installation, use and maintenance is solely the responsibility of the installer/user, and will not be assumed by Billet4X4.com.


From Austin TX, Mike Sasser's FJ w/ Xd Shackle Mounts, Crosby Shackles, & SP Fairlead
