4X4 SUSPENSION

Scroll down to view all items in our suspension products category.
CALL US OR

FOR PRODUCT INQUIRIES




XD Suspension Limiting Strap


(click images for large view)

XD Suspension Limiting Straps are designed for custom suspension applications. The 2" wide double-ply limiting straps are available in 5 stock lengths.

Need a custom length? - No problem! You can specify exactly what center-hole to center-hole length you need. Contact us!

Sold in Pairs.
Available in 5 lengths.
Measured center-hole to center-hole.
2" width double-ply.
5,000 lb. working load.
Angled Hardware prevents chafing.
Hardware is Black color, Strap is Yellow.
5/8" diameter mounting hole.
E-mail us for Custom lengths.
U.S. Made hardware & nylon webbing.
U.S. SHIPMENTS (CONTINENTAL U.S.)




Customer Service

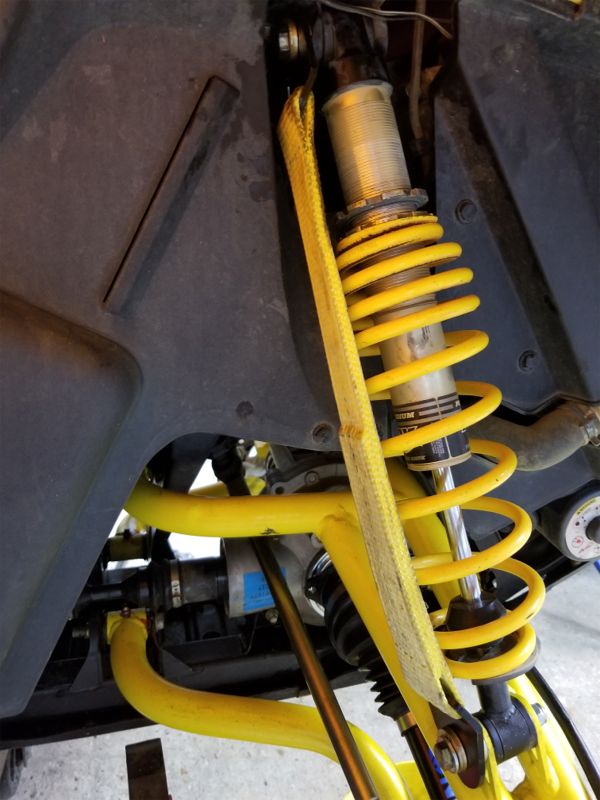

John Allen put limiting straps on his Can-Am.
"I'm very pleased with them. Thank you!"





>> NEED replacement PINZGAUER limiting straps? <<
Our Pinz Lim Straps measure 17-1/2 inches center-to-center





Nice garage line-up for Ron Melanson.



(click images for large view)

.
(click images for large view)
Edward from Canada put OKOR Lim Straps on his 1973 Pinz.



Leaf Spring Clamps


(click images for large view)


Our leaf spring clamps are a perfect choice when renewing or modifying your truck's leaf spring suspension. When adding or removing a leaf, our spring clamps allow the springs to be clamped exactly as desired.

Note: If the location on the spring clamp on the leaf spring is not dimpled, simply hammer the cross-strap notch flat before installing.

Sold in pairs (2) or a set of four (4).
Application: 1-3/4", 2", 2-1/2" and 3" wide leaf springs.
Notched dimple cross-strap.
Easy to install.


Click Here for Installation Instructions
U.S. SHIPMENTS (CONTINENTAL U.S.

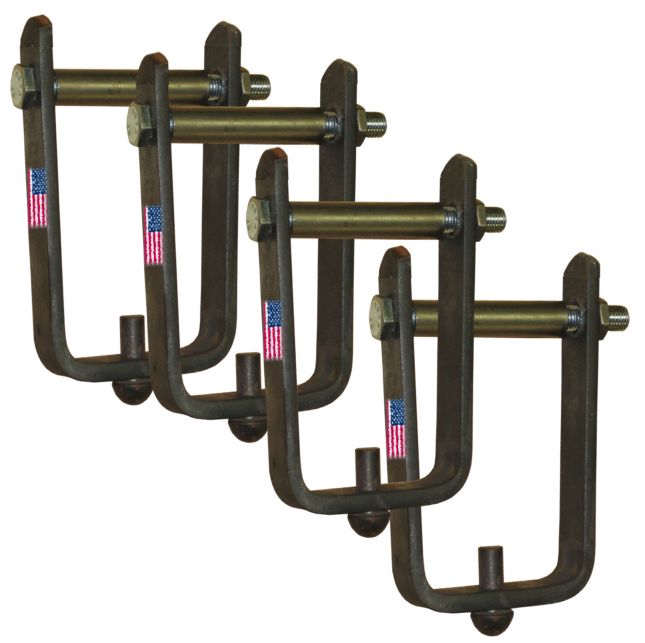

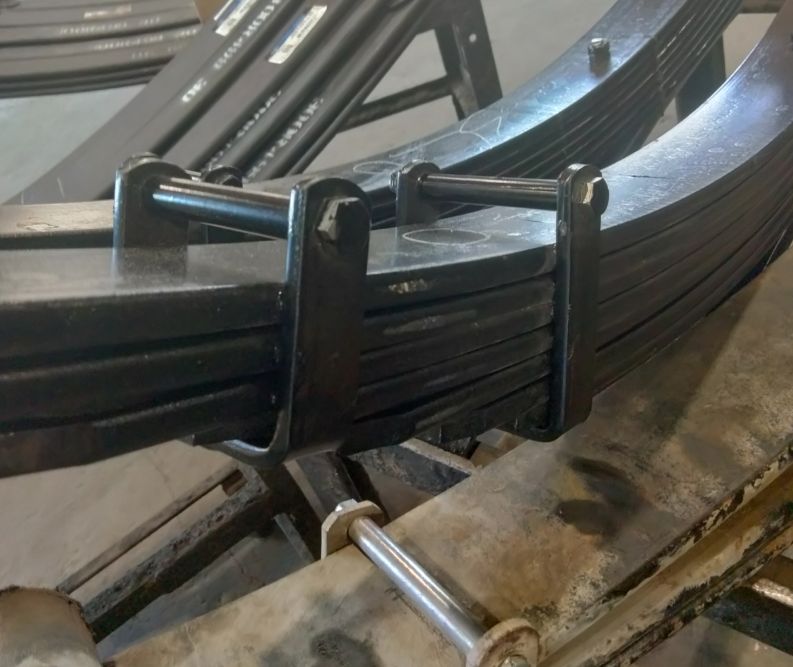

HD Rebound Leaf Spring Clamps


(click images for large view)

Our heavy-duty U.S. MADE leaf spring REBOUND clamps are a perfect choice when renewing or modifying your truck's leaf spring suspension. When adding or removing a leaf, our spring clamps allow the springs to be clamped exactly as desired.

Note: Use a ball peen hammer to secure the rivet on the outer leaf. And remove excess material from the clamp is using the lower hole.

U.S. Made.
Sold in pairs (2) or a set of four (4).
Application: 2-1/2" and 3" wide leaf springs.
Double drilled holes to fit a 3-1/2" and 4-1/2" spring pack. Need a custom size? Contact us!
Easy to install.

Note: Use a ball peen hammer to secure the rivet on the outer leaf. And remove excess material from the clamp if using the lower hole.
U.S. SHIPMENTS (CONTINENTAL U.S.)





Axle Shock Mounts


(click image for large view)

These shock mounts are designed to be used on an axle tube. It is best used in applications where the shock's upper mount is along the frame rail. The contoured shape is sized for 3" axle tube. It can be easily modified for use with any diameter axle tube. Mount accepts 1/2" bolts and shocks with 1-3/8" wide eyes/bushings.

Sold in pairs.
Weld-on.
Designed for 3" axle tubes.
Easily modified for larger axle tubes.
Accepts 1/2" bolts.
Accept standard 1-3/8" wide shock eyes/bushings.
U.S. made.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$19.99 per pair




U-Style Shock Mounts


(click image for large view)

These shock mounts are designed to be used for mounts on flat surfaces. The mount is designed to be welded into place. Mount accepts 1/2" bolts and shocks with 1.5" wide eyes/bushings.

Sold in pairs.
Weld-on or bolt-on.
Accept standard 1.5" wide shock eyes/bushings.
U.S. made.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$29.99 per pair




Stud Shock Mounts


(click image for large view)

These shock mounts are designed as an upper shock mount on a crossmember. They fit into a 1/2" diameter hole drilled through a 2" crossmember (or tube). They can also be used as a weld-on mount for sway bar disconnects on a front axle. They typically would be welded to the lip of a spring plate.

Sold in pairs.
Weld-on.
Insertion section: 1/2" x 2-1/4".
Shock mount section: 5/8" x 1-1/4".
Designed as an upper shock mount.
Can also be used as sway bar
disconnect mount.
U.S. made.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$54.99 per pair

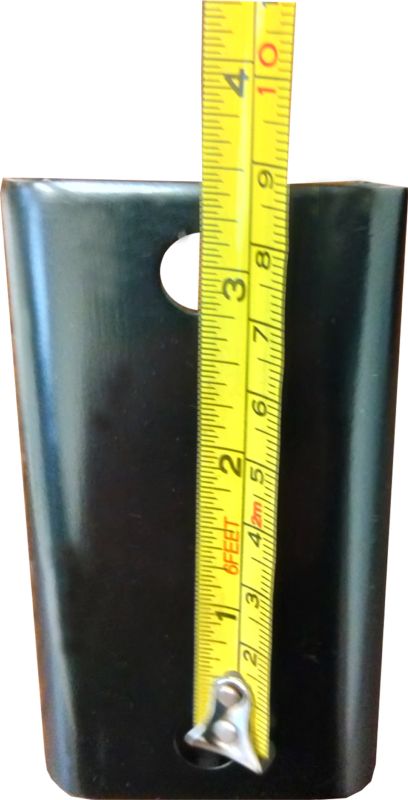

2" Leaf Spring Hangers


(click image for large view)

Weld-on or bolt-on brackets for 2" (Jeep CJ, etc.) width springs. Can be used to re-locate leaf spring mounts, and are useful in many other custom applications. Use with a spring bolt to complete the installation.

For 2" leaf spring applications.
1/4" steel.
Sold in pairs.
U.S. made.
.
(click images for large view)
U.S. SHIPMENTS (CONTINENTAL U.S.)
$54.99 per pair




2-1/2" Leaf Spring Hangers


(click images for large view)


Weld-on brackets for 2-1/2" (Jeep YJ, Toyota, Land Rover, etc.) width springs. Can be used to re-locate leaf spring mounts, and are useful in many other custom applications. Use with a spring bolt to complete the installation.

For 2-1/2" leaf spring applications.
1/4" steel.
Sold in pairs.
U.S. made.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$39.99 per pair




Universal Bump Stops


(click image for large view)

The universal-fit competition race-style polyurethane bump stop is designed with a large reinforced metal plate welded to a mounting plate and molded-in, to better smooth out compression They help prevent damaging and expensive suspension component contact.

Sold in pairs.
Dimensions: 4-1/2" H, 4-1/2" L, 2-1/2" W.
3/8" stud mount with locking nut.
Prevents suspension bottoming-out.
Lasts longer than original rubber stops.
Hyper Flex Performance Polyurethane.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$109.99 per pair




HD U-Bolt Set


(click image for large view)

Our U-bolts are designed to fit many other axle housing applications, including Dana 60, Ford 8.8", Toyota, and Land Rover.

Sold in a set of four (4).
Two sizes available.
Dimensions: 3" Axle diameter, 7" Long.
Dimensions: 3-1/2" axle diameter, 8" Long.
9/16" thread with 7/8" nut & lock washer.
U.S. SHIPMENTS (CONTINENTAL U.S.)





Leaf Spring Center Bolts


(click image for large view)

Our leaf spring center bolts are a must-have when resizing or modifying your truck's leaf spring suspension. When adding or removing a leaf, always use a new center bolt.

Sold in pairs (2) or a set of four (4).
Two diameters available. Multiple lengths.
U.S. SHIPMENTS (CONTINENTAL U.S.)




Toyota Leaf Spring Hangers


(click images for large view)

Weld-on brackets to replace cracked or bent factory hangers. Note: They are 1/4" taller than the factory bracket. Will accept the factory pin kit. They can also be used to make a cross member for a straight axle conversion using the factory straight axle springs. Can also be used on a cross member to convert from 2wd to 4wd. Replaces the factory spring bracket 48414-35040 which is no longer available.

Laser cut 1/4" A36 plate steel.
For 2-1/2" leaf spring applications.
Weld-on application.
1/4" steel.
Sold in pairs.
U.S. made.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$79.99




(click image for large view)

XD Antiwrap Spring Perch


(click image for large view)

Antiwrap spring perch is designed with a longer seat to minimize spring and axle wrap during heavy loading. This design causes the spring to remain flat and prevent damage. For use with 2-1/2" wide springs.

Sold in pairs.
Xtreme Duty 1/4" steel - weld-on.
Antiwrap design.
6" long seat with center & 1" offset holes.
Designed for 2-1/2" wide leaf springs.
Designed for 3" axle tubes.
Easily modified for larger axle tubes.
U.S. made.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$49.99 per pair




HD Leaf Spring Lift Blocks


(click image for large view)

HD Lift blocks are designed to be used to gain extra lift on rear leaf springs that are mounted over the axle (SOA).
Note: Lift blocks to be used on rear suspension only.

Available in 6 heights.
Sold in pairs.
HD cast-iron.
2-1/2" width, 5" length.
9/16" pin, 9/16" hole.
U.S. SHIPMENTS (CONTINENTAL U.S.)





OME Suspension Kits


(click image to view OME Kits)


Old Man Emu suspension systems include carefully matched spring and shock combinations engineered to improve vehicle ride quality, handling and control under various loads. Special attention is given to improving suspension travel without adversely affecting driveline and steering geometry. Old Man Emu is not just a lift kit, but an entire suspension upgrade, with superior shock valving, and spring rating.



Survival Shovels

Don't go without! A shovel may make all the difference. Stores easily. Two sizes available.

Mini Axe Set

Of heavy steel contruction, this five in one tool, is a highly useful go-anywhere easy-to-handle mini axe-set.


Disclaimer. Please read: The effectiveness of this equipment is directly related to the manner in which it is installed, used (for off-road use only), and/or maintained. Proper installation, use and maintenance is solely the responsibility of the installer/user, and will not be assumed by Billet4X4.com.
