ONBOARD AIR

24 Volt Air Compressor

- 450 Series -

(click image for large view)


The 24 volt HD 450 Series hardmount Air Compressor is designed for ex-military vehicles with 24 volt electrical systems (Uni-Mog, Pinzgauer, HumVee, Land Rover, etc.). It is designed for airing up tires 35" tall or larger. The 450C can air up a 35" x 12.5" tire from 15 to 30 PSI in about 2-3/4 minutes.

Compressor includes:
Stainless Steel 1.5' leader hose.
Inline Check Valve.
Remote mountable intake filter.
All necessary wiring and terminals.
U.S. SHIPMENTS (lower 48)
$439.99



450 Series Standard Features:
Oil-less design.
Hi-performance PTFE piston ring.
Stainless Steel Valves.
Moisture and dust resistant
Gear-less direct drive motor.
Anodized aluminum alloy cylinder.
Mounting plates vibration isolators.
Auto reset thermal overload protector.

450 Series Specs:
24 Volt.
11 max amps.
1/4 HP.
150 PSI max working pressure.
158 F max ambient temperature.
-40 F min ambient temperature.
Permanent magentic motor.
100% max duty cycle at 100 PSI - at 72 F.
Size - 12-3/4" L x 4" W x 7" H.
Weight - 9-3/4 lbs.

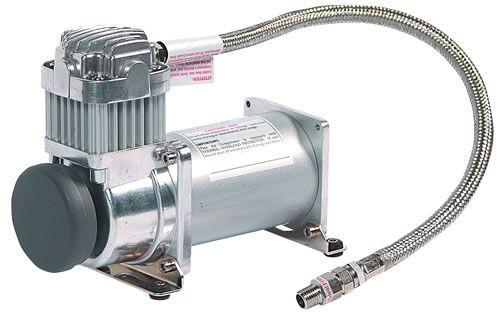

24 Volt Air Compressor

- 325 Series -

(click image for large view)


The 24 volt 325 Series hardmount Air Compressor is designed for ex-military vehicles with 24 volt electrical systems (Uni-Mog, Pinzgauer, HumVee, Land Rover, etc.).

Compressor includes:
Stainless Steel 1.5' leader hose.
Inline Check Valve.
Remote mountable intake filter.
All necessary wiring and terminals.
U.S. SHIPMENTS (lower 48)
$279.99



24 Volt 325 Series Standard Features:
Oil-less design.
Hi-performance PTFE piston ring.
Stainless Steel Valves.
Moisture and dust resistant
Gear-less direct drive motor.
Anodized aluminum alloy cylinder.
Mounting plates vibration isolators.
Auto reset thermal overload protector.

24 Volt 325 Series Specs:
24 Volt.
12 max amps.
150 PSI max working pressure.
158 F max ambient temperature.
-40 F min ambient temperature.
Permanent magentic motor.
33% max duty cycle at 100 PSI.
Size - 8" L x 4" W x 7-1/4" H.
Weight - 7 lbs.


Onboard Air Kits

This kit converts your already capable compressor into a total onboard air system.

Deflator/Inflator

The most versatile off-road tool for airing up and down.


Disclaimer. Please read: The effectiveness of this equipment is directly related to the manner in which it is installed, used (for off-road use only), and/or maintained. Proper installation, use and maintenance is solely the responsibility of the installer/user, and will not be assumed by Billet4X4.com.
