ONBOARD AIR

Onboard Air Compressor

- 450 Series -

(click image for large view)

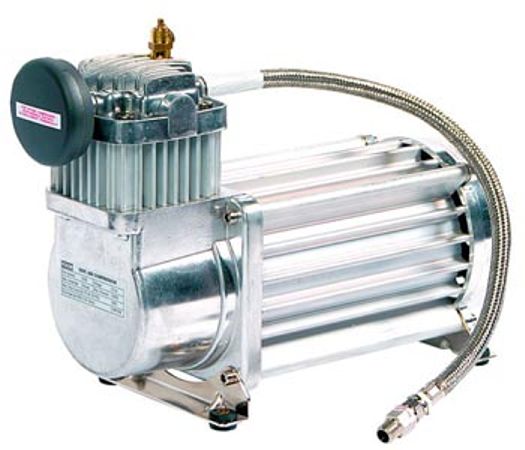

The 450 Series hardmount Onboard Air Compressor from Viair™ is a very powerful compressor. It is designed for airing up tires 35" tall or larger. The 450C can air up a 35" x 12.5" tire from 15 to 30 PSI in about 3-1/4 minutes, or a 33" x 12.5" tire in about 2-1/2 minutes.

Standard equipment includes all necessary wiring and terminals, moisture resistant on/off switch, factory installed 1.5 ft stainless steel braided leader hose, inlet air filter and mounting hardware.

450 Series Standard Features:
Oil-less design.
Hi-performance PTFE piston ring.
Stainless Steel Valves.
Moisture and dust resistant
Moisture resistant on/off switch
Gear-less direct drive motor.
Anodized aluminum alloy cylinder.
Mounting plates vibration isolators.
Auto reset thermal overload protector.

450 Series Specs:
12 Volt.
19 max amps.
1/3 HP.
150 PSI max working pressure.
158 F max ambient temperature.
-40 F min ambient temperature.
Permanent magentic motor.
100% max duty cycle at 100 PSI - at 72 F.
Size - 12-1/2" L x 4" W x 7" H.
Weight - 10 lbs.
450C Tire Inflation Rates
  Begin/End PSI 31" X 10.5"
  0 To 30 PSI 4 Min. 05 Sec.
  15 To 30 PSI 2 Min. 10 Sec.
  Begin/End PSI 33" X 12.5"
  0 To 30 PSI 5 Min. 30 Sec.
  15 To 30 PSI 2 Min. 50 Sec.
  Begin/End PSI 35" X 12.5"
  0 To 30 PSI 6 Min. 55 Sec.
  15 To 30 PSI 3 Min. 30 Sec.


U.S. SHIPMENTS (CONTINENTAL U.S.)
$349.99



Performance Data
PSI CFM AMP BAR LPM AMP
0 1.66 11 0 47.0 11
10 1.55 12 1.0 42.0 13
20 1.41 13 2.0 38.5 14
30 1.34 15 3.0 36.5 16
40 1.31 16 4.0 34.0 17
50 1.27 16 5.0 30.5 18
60 1.18 17 6.0 28.0 18
70 1.09 18 7.0 26.5 19
80 1.04 18 8.0 25.0 19
90 0.97 18 9.0 23.0 18
100 0.94 19 10.0 21.0 18
110 0.90 19
120 0.86 19
130 0.81 18
140 0.76 18
150 0.72 18


Onboard Air Compressor

- 400 Series -

(click image for large view)


The 400 Series hardmount Onboard Air Compressor from Viair™ is a very powerful yet compact compressor. It is designed for airing up tires 35" tall or larger. The 400H can air up a 35" x 12.5" tire from 15 to 30 PSI in about 2-1/4 minutes, or four 33" x 12.5" tires in about 8 minutes.

Compressor includes:
Moisture resistant on/off switch.
1.5' stainless steel leader hose.
1/4" quick connect stud.
All necessary wiring and terminals.

Easy air hose hookup (see below).

400 Series Standard Features:
Oil-less design.
Hi-performance PTFE piston ring.
Stainless Steel Valves.
Moisture and dust resistant
Moisture resistant on/off switch
Gear-less direct drive motor.
Anodized aluminum alloy cylinder.
Mounting plates vibration isolators.
Auto reset thermal overload protector.

400 Series Specs:
12 Volt.
28.5 max amps.
1/4 HP.
150 PSI max working pressure.
158 F max ambient temperature.
-40 F min ambient temperature.
Permanent magentic motor.
40 minutes max duty cycle at 30 PSI - at 72 F.
33% (15 min on - 30 min off) max duty cycle
at 100 PSI - at 72 F.
Size - 11-1/4" L x 4" W x 7" H.
Weight - 8 lbs.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$299.99



Onboard Air Compressor

- 200 Series -

(click image for large view)


The 200 Series hardmount Onboard Air Compressor from Viair™ is designed for airing up tires up to 33" tall. The 200H can air up a 33" x 12.5" tire from 15 to 30 PSI in about 3 minutes, or four 31" x 10.5" tires in less than 9 minutes.

Compressor includes:
Moisture resistant on/off switch.
HD 1.5' leader hose.
1/4" quick connect stud.
All necessary wiring and terminals.

Easy air hose hookup (see below).

200 Series Standard Features:
Oil-less design.
Hi-performance PTFE piston ring.
Stainless Steel Valves.
Moisture and dust resistant
Moisture resistant on/off switch
Gear-less direct drive motor.
Anodized aluminum alloy cylinder.
Mounting plates vibration isolators.
Auto reset thermal overload protector.

200 Series Specs:
12 Volt.
23 max amps.
1/4 HP.
150 PSI max working pressure.
158 F max ambient temperature.
-40 F min ambient temperature.
Permanent magentic motor.
40 minutes max duty cycle at 30 PSI - at 72 F.
20% (8 min on - 32 min off) max duty cycle
at 100 PSI - at 72 F.
Size - 7" L x 4-1/2" W x 4-1/2" H.
Weight - 4-3/4 lbs.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$229.99




Onboard Air Kits

This kit converts your already capable compressor into a total onboard air system.

Deflator/Inflator

The most versatile off-road tool for airing up and down.


Disclaimer. Please read: The effectiveness of this equipment is directly related to the manner in which it is installed, used (for off-road use only), and/or maintained. Proper installation, use and maintenance is solely the responsibility of the installer/user, and will not be assumed by Billet4X4.com.
