4X4 RECOVERY GEAR


(click image for large view)

Slimline Aluminum Hawse Fairlead



Designed specifically for winches running synthetic winch rope. Standard 10" bolt pattern with 7-1/4" drum-width slot. Machined from billet aluminum and maintains a smooth machined surface, unlike traditional steel fairleads, our fairlead will not fray or tangle the winch rope.
Hardware included.

Our aluminum fairlead weighs (2 lbs) only a fraction of a steel hawse or roller fairleads. Each aluminum fairlead comes with mounting hardware as shown.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$49.99


Note: Not for use with steel cable.




How do our two fairleads differ?

(click for large view)

We like to offer our customers a choice. There are no differences in performance, whatsoever. We describe our two fairleads as slimline and heavy-duty. The slimline is 3/4" wide, and the heavy-duty is 1" wide. The slimline has a 7-1/4" drum-width slot, and the heavy-duty has a 7" drum-width slot. They both have the same 10" bolt pattern, compatible with most electric winches on the market today.

Apart from those models listed here - HD, SL, H1, M6000, and ATV, we also offer aluminum Hawse fairleads for non-standard applications, including a 12" bolt pattern with 9" slot width for hydraulic winches. Please call for more info.



HD Aluminum Hawse Fairlead


(click image for large view)

Designed specifically for winches running synthetic winch rope. Standard 10" bolt pattern with 7" drum-width slot.
Hardware included.

Machined from billet aluminum and maintains a smooth machined surface, unlike traditional steel fairleads, this fairlead will not fray or tangle the winch rope. In addition, this aluminum fairlead weighs (2.5 lbs) only a fraction of a steel hawse or roller fairleads. Each aluminum fairlead comes with mounting hardware as shown.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$59.99







4X4 Winch Rope



ATV Winch Rope



Hummer Winch Rope





SP Aluminum Hawse Fairlead


(click image for large view)

Designed specifically for bumpers where the winch is mounted "feet" front - for example ARB bumpers, and for Ramsey winches with below-center bolt pattern. The bolt holes are 3/8" below center. Standard 10" bolt pattern with 7-1/2" drum-width slot.
Hardware included.

Machined from billet aluminum and maintains a smooth machined surface, unlike traditional steel fairleads, this fairlead will not fray or tangle the winch rope. In addition, this aluminum fairlead weighs around 2 lbs, only a fraction of a steel hawse or roller fairleads. Each aluminum fairlead comes with mounting hardware.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$69.99


Note: Not for use with steel cable.

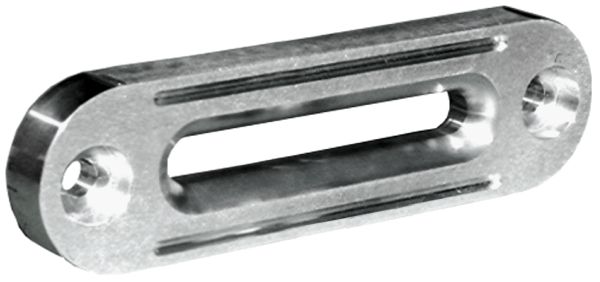

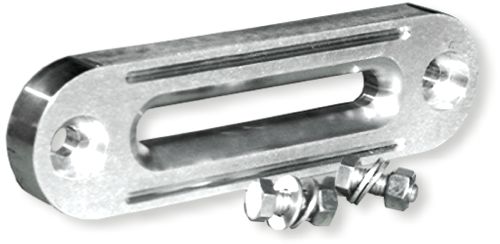

H1 Aluminum Hawse Fairlead


(click image for large view)

Designed specifically for narrow-drum H1 winches running synthetic winch rope. Narrow 8-1/2" bolt pattern with 5-1/2" drum-width slot.
Hardware included.

Machined from billet aluminum and maintains a smooth machined surface, unlike traditional steel fairleads, this fairlead will not fray or tangle the winch rope. In addition, this aluminum fairlead weighs (2.25 lbs) only a fraction of a steel hawse or roller fairleads. Each aluminum fairlead comes with mounting hardware as shown.

Note: Not for use with steel cable.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$69.99







4X4 Winch Rope



ATV Winch Rope



Hummer Winch Rope





ATV Aluminum Hawse Fairlead


(click image for large view)

Designed specifically for ATV winches running synthetic winch rope.
Hardware included.

Machined from billet aluminum and maintains a smooth machined surface, unlike traditional steel fairleads, this fairlead will not fray or tangle the winch rope. In addition, this aluminum fairlead weighs only a fraction of the steel hawse and roller fairleads. Each aluminum fairlead comes with mounting hardware as shown.

Note: Not for use with steel cable.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$39.99






SD Aluminum Hawse Fairlead


(click image for large view)

Our SD (short-drum) aluminum Hawse fairlead is designed specifically for short-drum winches running synthetic winch rope, such as the Warn M6000 SDP or Warn 4.0ci with 6" bolt pattern.
Hardware included.

Machined from billet aluminum and maintains a smooth machined surface, unlike traditional steel fairleads, this fairlead will not fray or tangle the winch rope. In addition, this aluminum fairlead weighs only a fraction of the steel hawse and roller fairleads. Each aluminum fairlead comes with mounting hardware as shown.

Note: Not for use with steel cable.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$44.99






WIDE-BODY Aluminum Hawse Fairlead


(click image for large view)

Designed specifically for industrial winches running synthetic winch rope. Wide-Body 12" bolt pattern with 9" drum-width slot.
Hardware included.

Machined from billet aluminum and maintains a smooth machined surface, unlike traditional steel fairleads, this fairlead will not fray or tangle the winch rope. In addition, this aluminum fairlead weighs (2.5 lbs) only a fraction of a steel hawse or roller fairleads. Each aluminum fairlead comes with mounting hardware as shown.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$69.99


Note: Not for use with steel cable.




Ramsey Winch Aluminum Hawse Fairlead


(click image for large view)

Designed specifically for use with Ramsey Winches running synthetic winch rope.
Machined from billet aluminum and maintains a smooth machined surface, unlike traditional steel fairleads, this fairlead will not fray or tangle the winch rope. In addition, this aluminum fairlead weighs only a fraction of the steel hawse and roller fairleads. Each aluminum fairlead comes with mounting hardware.

All necessary mounting hardware.
Reduces abrasion of the rope
For 4X4 winches up to 9,500 lbs.

Note: Not for use with steel cable.
U.S. SHIPMENTS (CONTINENTAL U.S.)
$69.99




Winch Hooks

Every application and size of winch hook. Don't wait to upgrade. The ultimate solution in winching techniques. For the serious off-roader.

Synthetic Winch Rope

AmSteel Blue is the latest development of HMPE fiber in a 12-strand braided rope utilizing Parallay design with proprietary blue urethane UV coating.


Disclaimer. Please read: The effectiveness of this equipment is directly related to the manner in which it is installed, used (for off-road use only), and/or maintained. Proper installation, use and maintenance is solely the responsibility of the installer/user, and will not be assumed by Billet4X4.com.




From Austin TX, Mike Sasser's FJ w/ Xd Shackle Mounts, Crosby Shackles, & SP Fairlead
